THE BOTTOM LINE
For the 54th floor at 30 Rockefeller Plaza, GPRS delivered CADD plans, a BIM model, and REBNY compliant measurements so the architecture and design firm can obtain precise measurement of rentable square footage, accelerate design planning, and execute a tenant buildout with confidence.
Industry
Commercial Office
Service
Reality Capture: 3D Laser Scanning, Photogrammetry, CAD, BIM, BOMA/REBNY Analysis
Location
New York, New York
GPRS Project Manager Insight
Deliverables
Colorized point cloud, 2D CADD drawings, floor contours, 3D Revit model, BOMA/REBNY analysis, 3D virtual tour
PROJECT APPLICATION
Reality Capture Office Space for Lease
ASK
Task
An architecture and design firm required up-to-date existing conditions of 30 Rockefeller Plaza and comprehensive reality capture deliverables to customize and build out 33,000 s.f. on the 54th floor for a new global law firm tenant lease.
PROBLEM
- Building management requires accurate, up-to-date documentation for all floor layouts.
- The architecture and design firm needed detailed as-built information to customize the layout, interior finishes, and MEP requirements to meet the new tenant’s high-end specifications.
Solution
A GPRS Project Manager captured the space using a commercial grade 3D laser scanner and photogrammetry, then delivered a complete reality capture package, including:

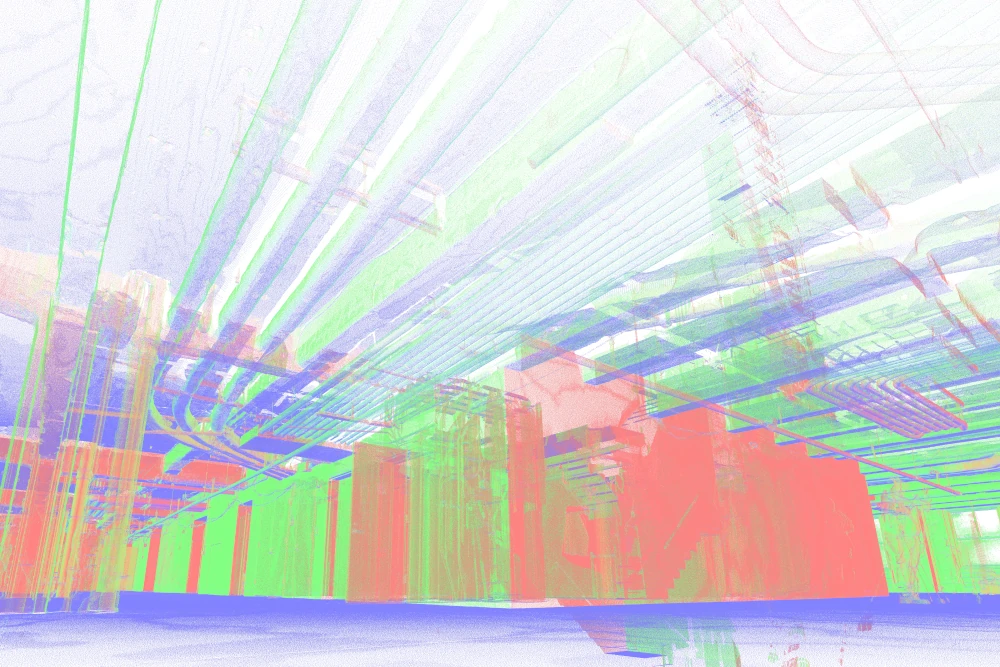

- Colorized point cloud
- 2D floor plans & reflected ceiling plans (RCPs)
- Floor contour maps
- 3D Revit model
- REBNY compliant area analysis & BOMA calculations
- 3D virtual tour
Benefits
- The firm received accurate 2D plans, a 3D BIM model, and a virtual tour to support renovations, layout adjustments, and system installations.

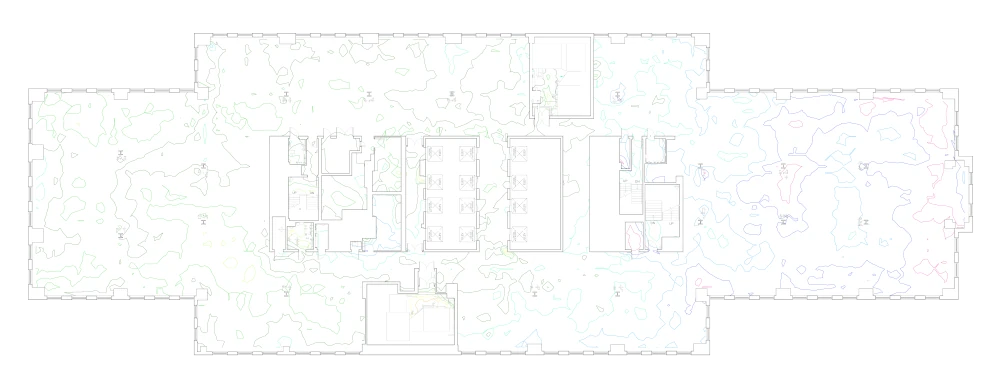

- Floor contour maps revealed the real “topography” of interior floor surfaces, delivering precise elevations for correct alignment.
- A color-coded MEP model made it easy to differentiate systems, identify clashes before construction, and prevent costly change orders.

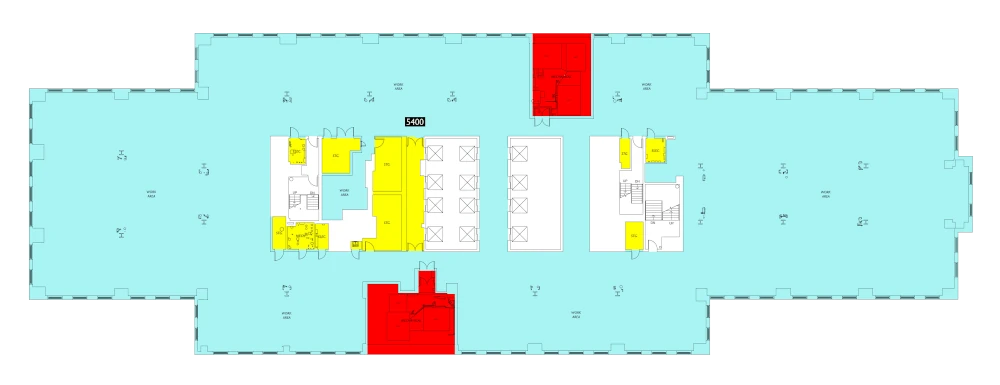

- The REBNY analysis ensured the space was measured according to New York City’s commercial real estate standards, giving the client accurate square footage for planning and leasing.
