Highlights
THE BOTTOM LINE
GPRS documented 15,000 s.f. inside Acrisure Stadium in both 2D & 3D to help them create a once-in-a-lifetime experience for NFL draftees, players, and fans.
Industry
Service
Location
GPRS Project Manager Insight
Deliverables

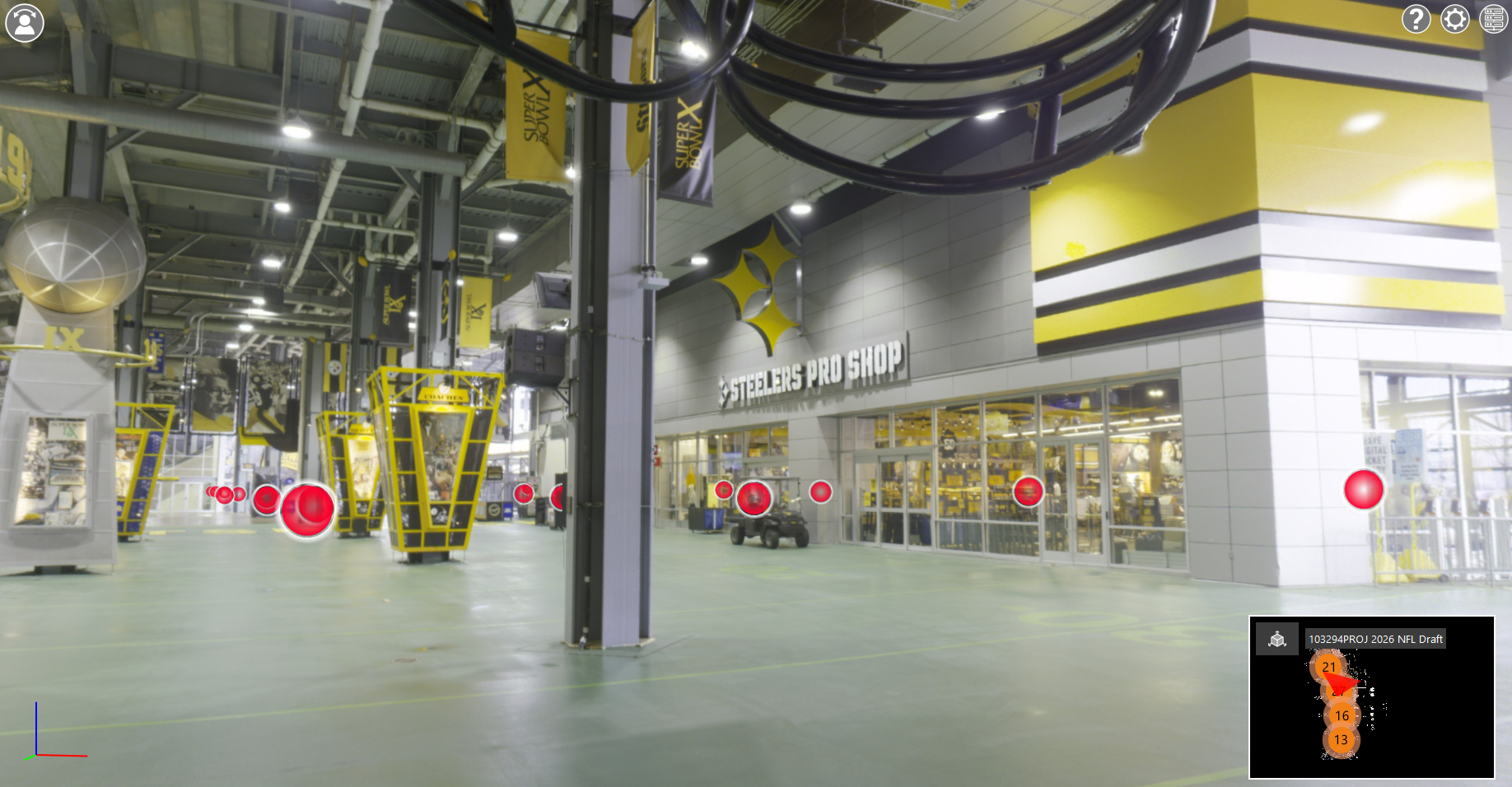

2D Floor Plan, Reflected Ceiling Plan, Virtual Tour, 3D Revit Model
PROJECT APPLICATION
ASK
Task
Scan approximately 15,000 s. f. of interior space
PROBLEM
- The client needed to transform multiple areas within Acrisure Stadium:
- Installing green rooms for players and their families as they waited for their names to be called
- Hanging large banners which required the locations of certain pipe runs that could affect where their display
- They needed up-to-date and precise measurements of the area to properly plan and safely execute the project
Solution

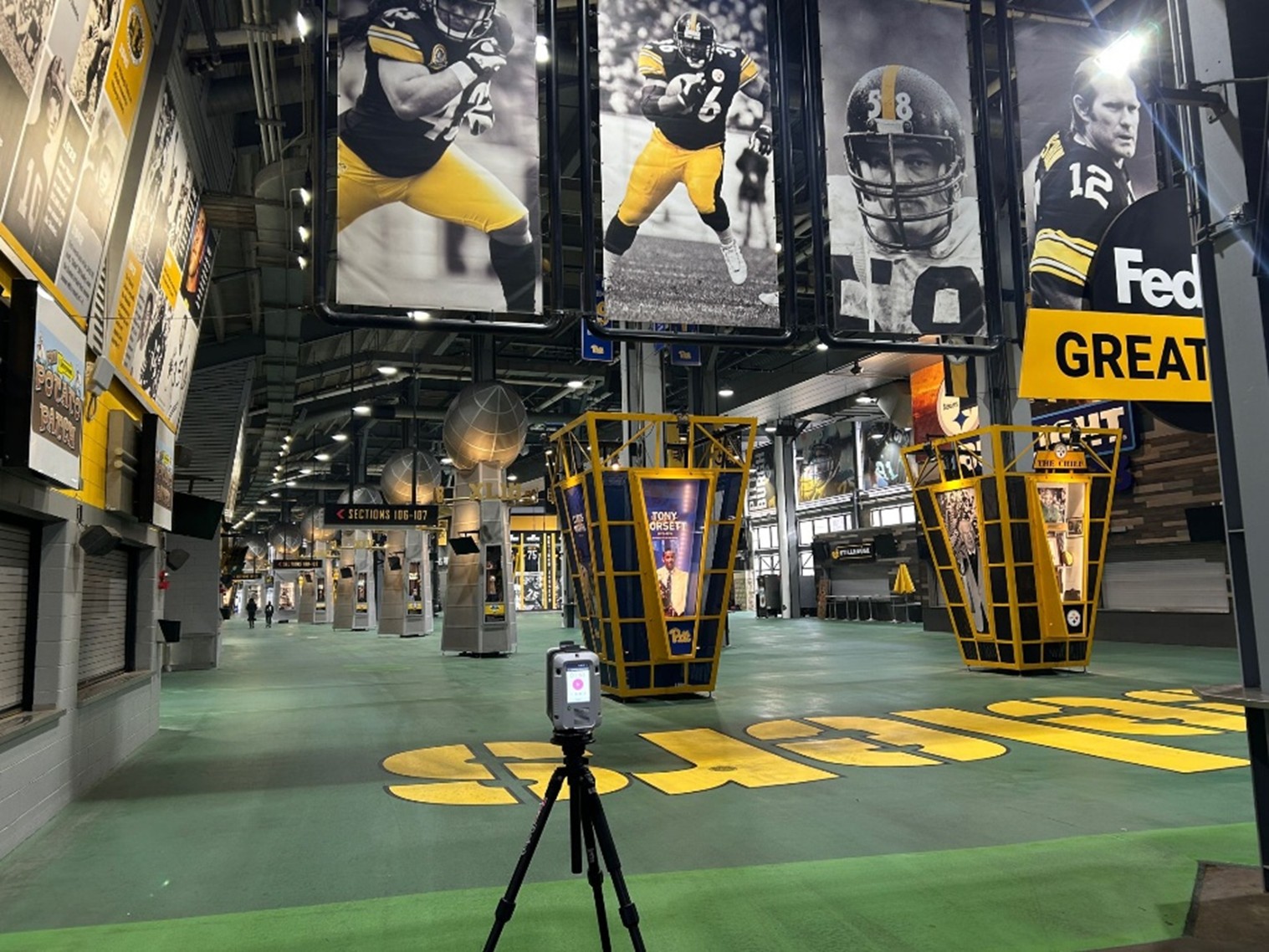

- GPRS Project Managers performed roughly 90 scans with LiDAR-based 3D laser scanners to capture every inch of the requested areas

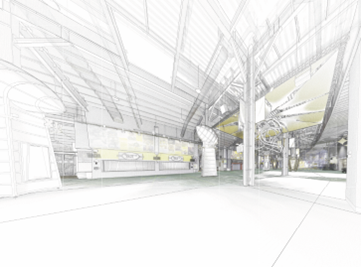

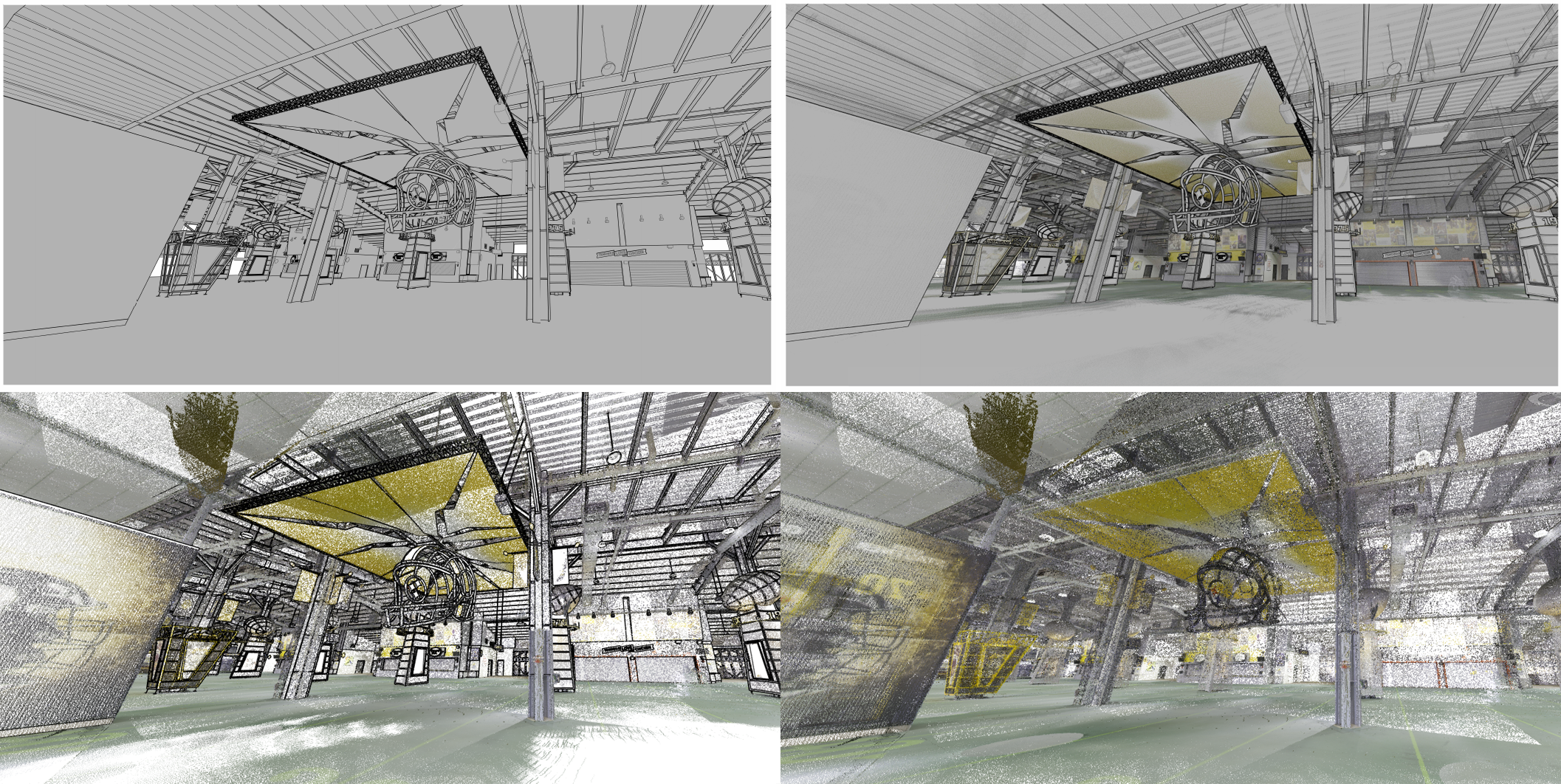

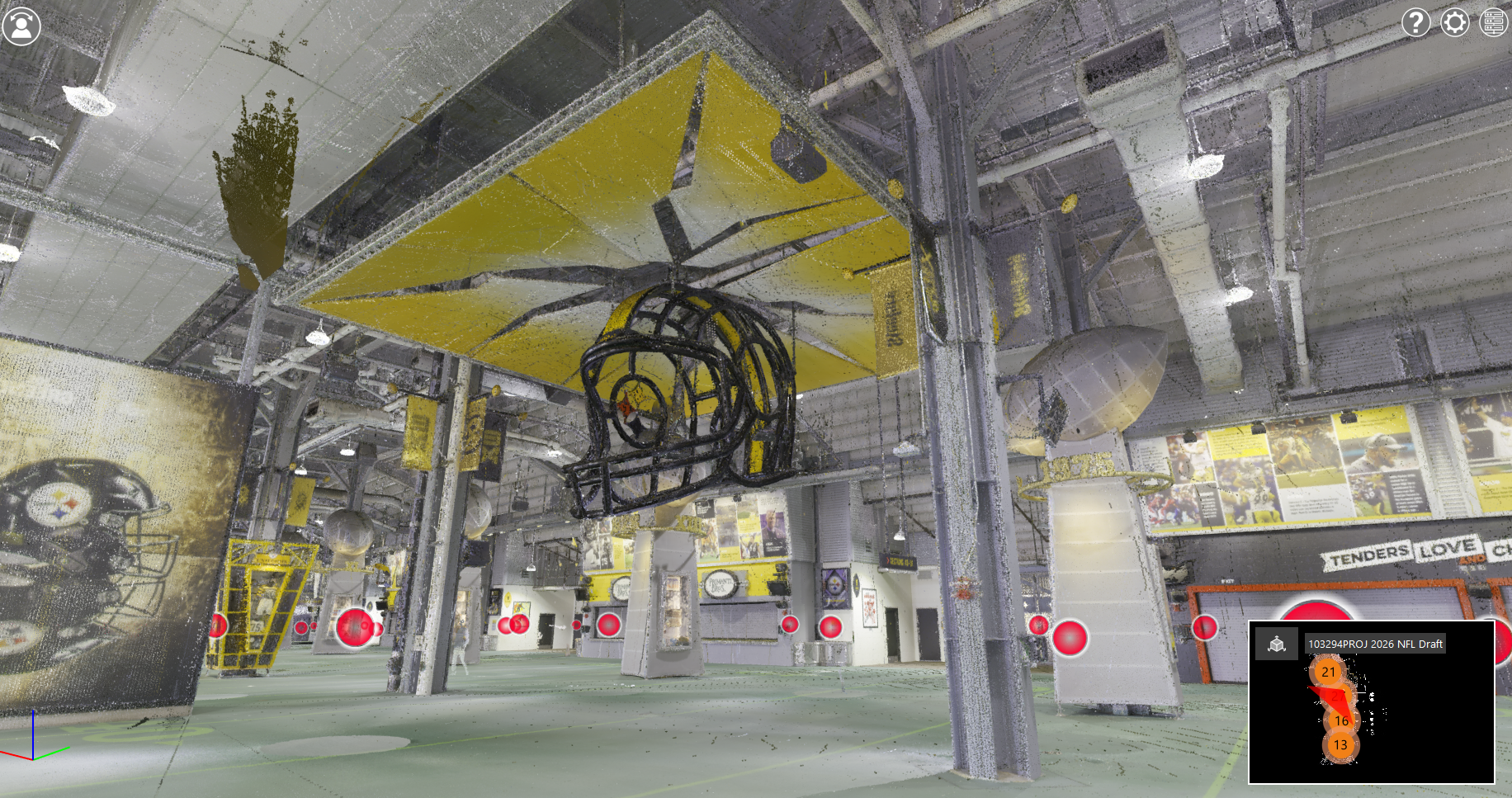

- The point cloud data obtained from these scans was translated into 2D drawings and 3D models to accurately plan the installations
Benefits
- 2-6mm accurate drawings and models provided the client with a clear look at the whole space before installation began
- The client was able to begin outfitting the stadium months before the first pick was called
- The client also used the deliverables as reference when returning the stadium’s interior to its original layout in preparation for the 2026 NFL season
